Manual Ground Mount System

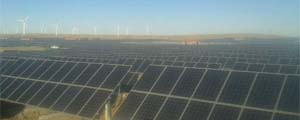

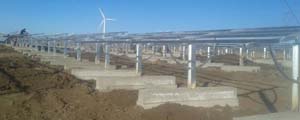

Cooperation case:
- Location: Xinjiang, China
- Project scale: 20MW
Description:
Solar ground mounting system is mainly applied in installation of solar panel. Adjustable solar ground mounting system can be modulated by hand to absorb the maximum solar energy. Our company is a professional manufacturer of PV solar ground mounting system for solar plant.
Assembly Drawing:
Technical Parameter:
| Type | Adjustable solar ground mounting system |
| Installation site | Ground level |
| Tilt | Adjustable every season |
| Applicable modules | Crystalline silicon modules |
| Material | Q235B |
| Surface treatment | HDG (hot dip galvanizing) |
| Wind pressure | 120km / h |
| Snow pressure | 120km / h |
- LANTYTO® Metals Accessories mainly include hook, clamp for iron sheet roof etc. If you need more information, please download relevant pdf.
Features:
- 1. Adjustability
The adjustable solar ground mounting system can be modulated according to solar altitude angle in different seasons. There are four angles in solar racking system to ensure it can get the maximum solar energy. The angles can be adjusted by hand. - 2. High stability
The adjustable solar ground mounting system adopts triangular lever control to ensure its stability. It won’t fall even 12 level typhoons comes. - 3. High efficiency
For every unit, there is one adjustment point to module. It takes five minutes to adjust one unit. - 4. To improve electricity generation
You just need to adjust the angles twice annually, and then electricity generation can be improved by 5-10%. - 5. Low cost
There is no need to do much preparation and no need to do maintenance for adjustable solar ground mounting system, which greatly reduces cost.
